CR1-E Crank Arm Set

$279.95 CAD
Color:
Black
Chrome
Size:
155mm
160mm

FEATURES

  • Made from 6066-T6 Aluminum. Cold forged then CNC machined.
  • EFBE Cat 5 Gravity EPAC certified.
  • 155mm and 160mm crank length options.
  • Compatible with DJI Avinox, Bosch CX Gen 4/ Gen 5, Bosch SX, Brose S-Mag, TQ HPR50 and Specialized 2.2 & 3.1 and all ISIS spindle motors.
  • 27mm offset
  • 155mm crank arms with bolts = 488 grams
  • 160mm crank arms with bolts = 500 grams

INSTALLATION

Tools Required:
8 mm Allen key

  1. Slide the drive-side crank arm onto the motor spindle, making sure the splines are correctly engaged.
  2. Thread the crank bolt in by hand, then tighten using an 8 mm Allen key. The crank arm should draw smoothly onto the spindle.
  3. Install the non-drive-side crank arm, ensuring it is positioned 180° opposite the drive-side arm.
  4. Tighten both crank bolts to 50 Nm using a torque wrench.
  5. Check that both crank arms are fully seated and rotate freely without contacting the motor housing or frame.

CRANK BOLT TORQUE: 50 Nm

Person on a bicycle performing a jump in a forest with trees and sky in the background
Person riding a mountain bike through a forest with autumn leaves

FAQs

Are these the exact parts the athletes are riding at Crankworx?

Yes, everything our athletes ride on their bikes are production parts that can be purchased on our website.

Do discount codes work on already discounted products?

Only one discount code will work with each order.

Can you cut my bars for me?

No, we do not cut any handlebars at our warehouse location.

I cut my handlebars, can I still return or exchange them?

No, we can only accept returns on products that are new, unmounted, uncut, with the original packaging. Upcycled products cannot be returned and are final sale.

Do I have to pay taxes if I order outside of Canada?

Yes, every country has their own duties and taxes that need to be paid upon delivery. For European customers we do not charge VAT on our website so that will be collected at the door.

Person performaing a stunt on a mountain bike in a forest setting
  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
H
Harry
absolutely satisfied

absolutely satisfied 💣

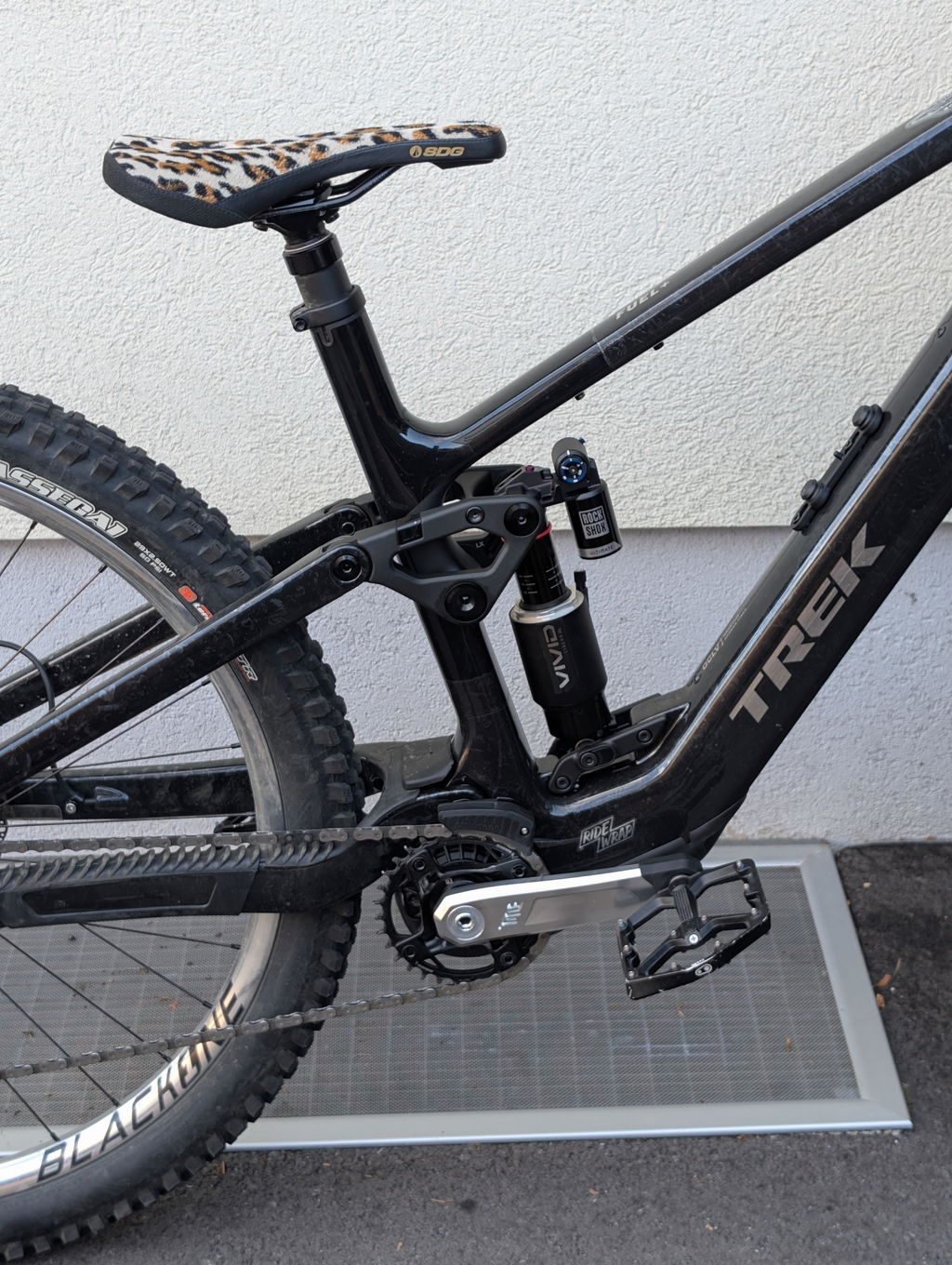

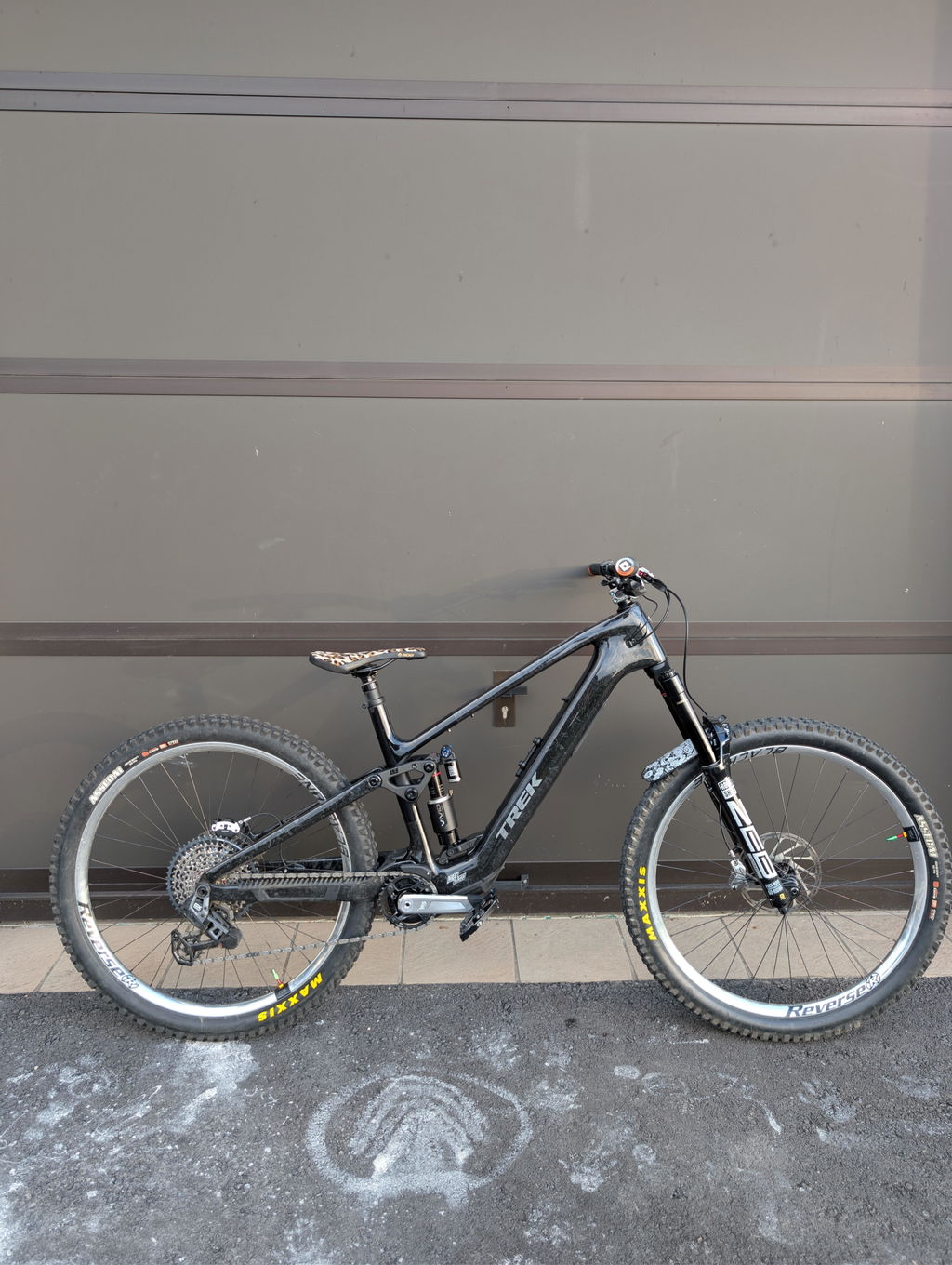

Harry review photo Harry review photo Harry review photo
M
Mirko Hohnstein
Love it

Love it 🔥

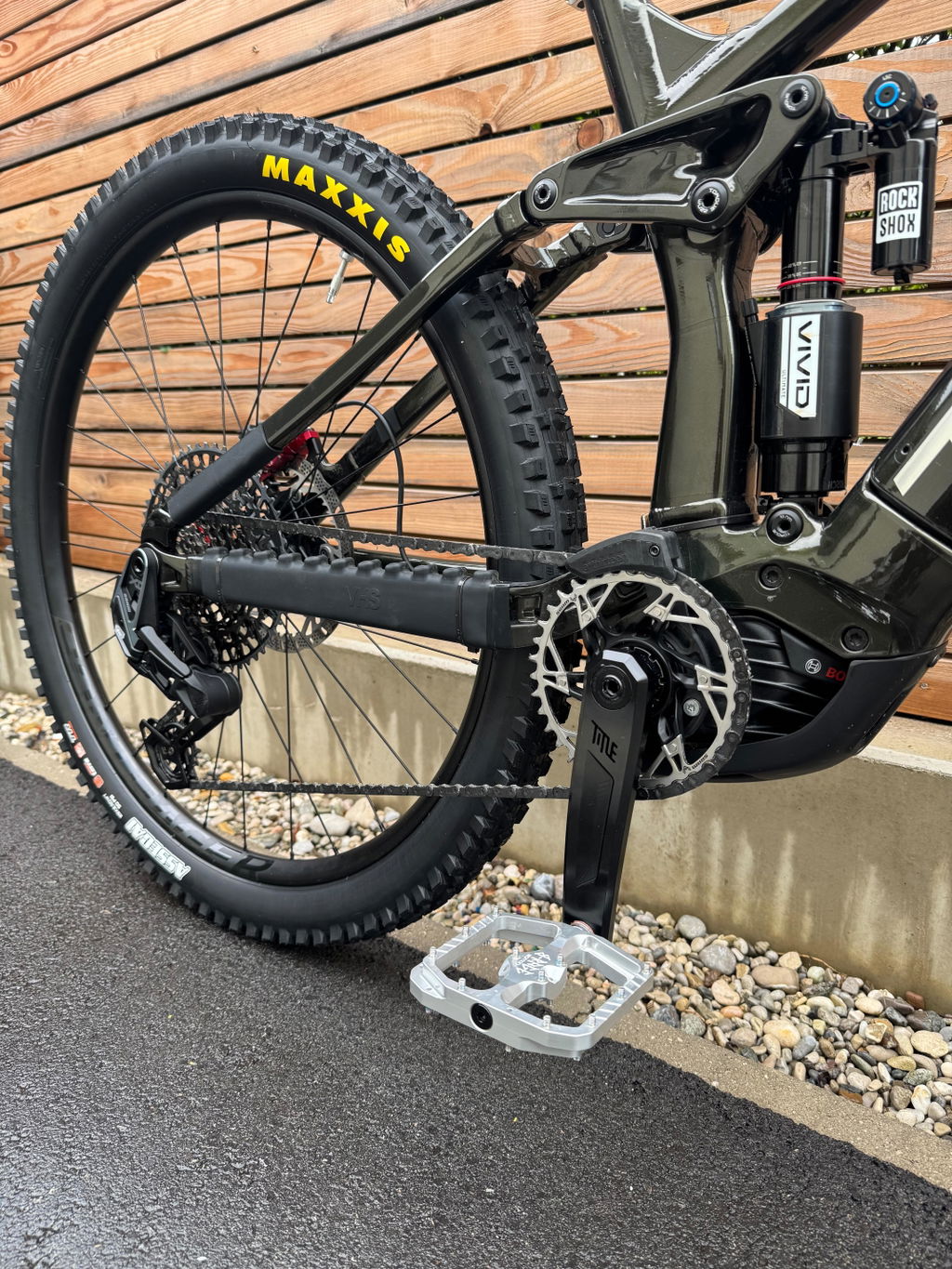

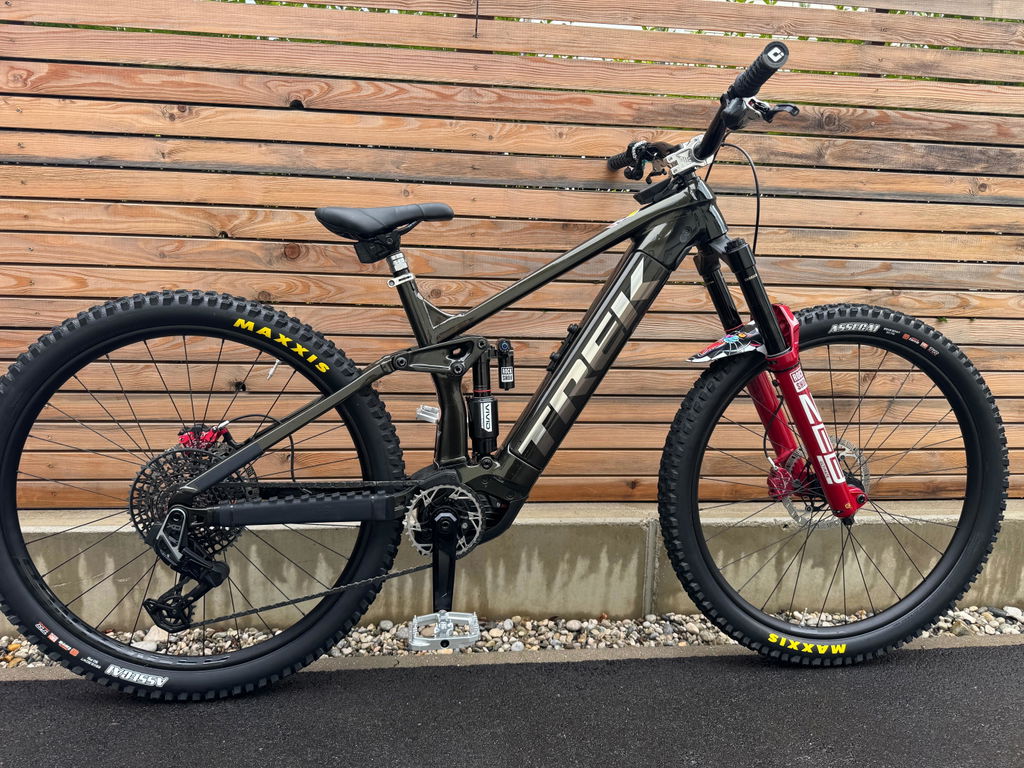

Mirko Hohnstein review photo Mirko Hohnstein review photo
J
Jason Paredez
Super impressed with the cranks!

Super impressed with the cranks! The fit and finish on them are second to none. I will definitely purchasing more of your products. Keep up the quality work!

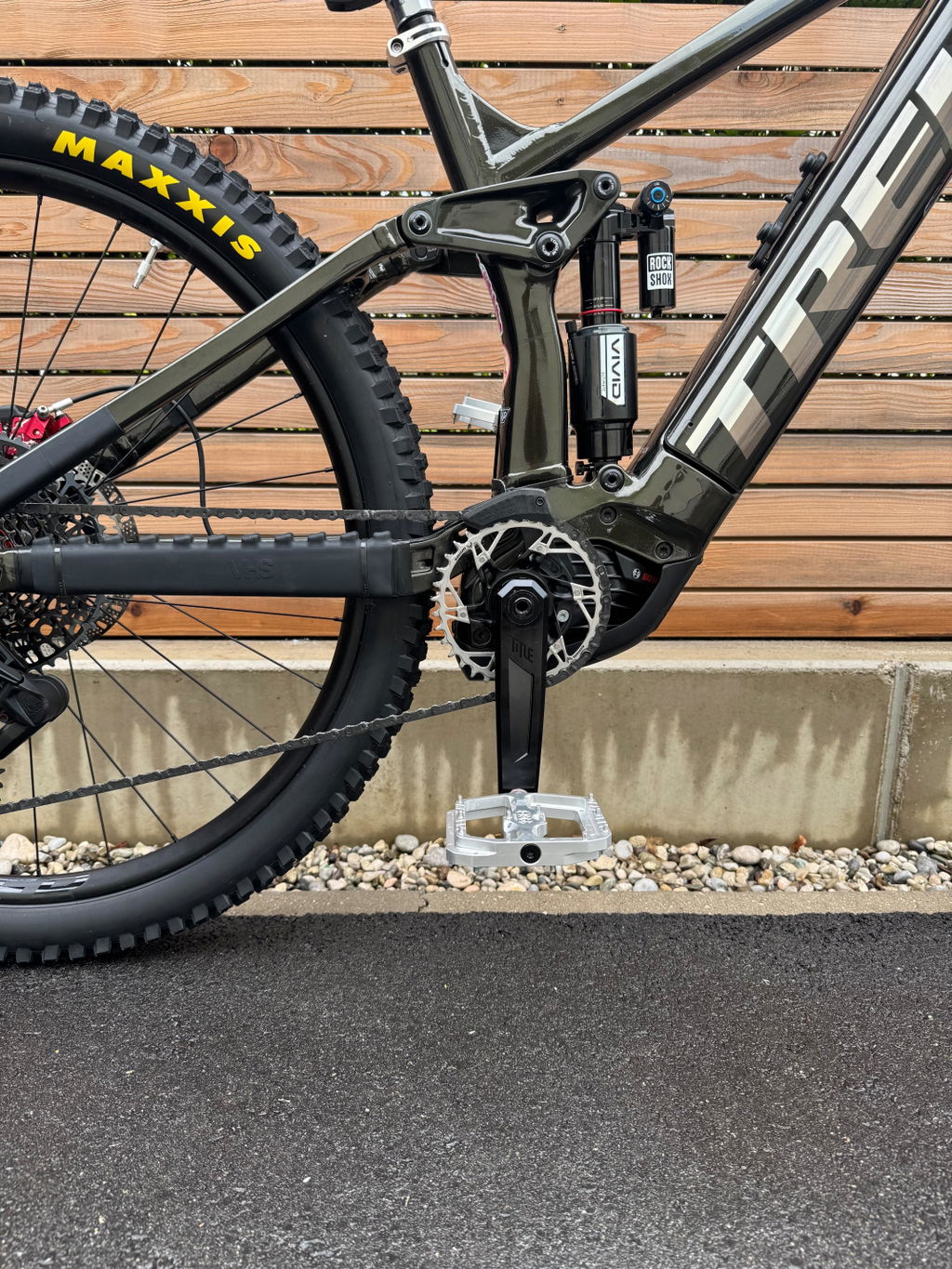

Jason Paredez review photo Jason Paredez review photo Jason Paredez review photo
K
Keith

Beautifully machined. Can't wait to get them installed! Wishing they were available in grey to compliment my ST1-35 stem.
