Assembly time: approximately 5 minutes.
Difficulty: Easy.
Maximum Stem Bolt Torque: 6Nm
STEP 1:
With the headset installed correctly & the preferred amount of spacers already installed on the fork steerer, slide the stem onto the steerer with the stem bolts loose.
STEP 2:
Place the necessary headset spacers above the stem on the steerer so that there is 5mm between the top of the steerer tube and the top of the headset spacers or stem.
STEP 3:
Install top cap, tighten down to 2Nm. Before torquing the stem bolts, put downward pressure on the bars with a gentle rocking motion. Re-tighten the top cap to 2-4Nm. Once you have successfully preloaded the headset, align the stem to the wheel and torque the stem bolts to 6Nm.
STEP 1:
With Stem face plate removed, install bar.
STEP 2:
Install top bar clamp and bolts, tighten bolts to stem body until there is no gap between the stem body and face clamps.
STEP 3:
Thread lower bolts until bar is held in place, but can still roll easily.
STEP 4:
Torque all face plate bolts to 6Nm.
Note: It is highly recommended to check the torque spec twice before riding.
Every AH1 handlebar comes stock at 800mm width with cut lines down to 730mm
No, we do not cut any handlebars at our warehouse location.
No, we can only accept returns on products that are new, unmounted, uncut, with the original packaging. Upcycled products cannot be returned and are final sale.
Yes, every country has their own duties and taxes that need to be paid upon delivery. For European customers we do not charge VAT on our website so that will be collected at the door.
Yes, everything our athletes ride on their bikes are production parts that can be purchased on our website.
Bars look great on my bike and feel like exactly the upgrade I needed.
These Bars are amazing! The packaging added to a great customer experience, and the bars feel crazy good!
Definitely a great product, not as bulky or in the way , I recommend you check it out, allows for more room, I also believe it’s very sturdy , because of less material.
Very nice bars maybe make 20mm rise
Looks good feels amazing would highly recommend

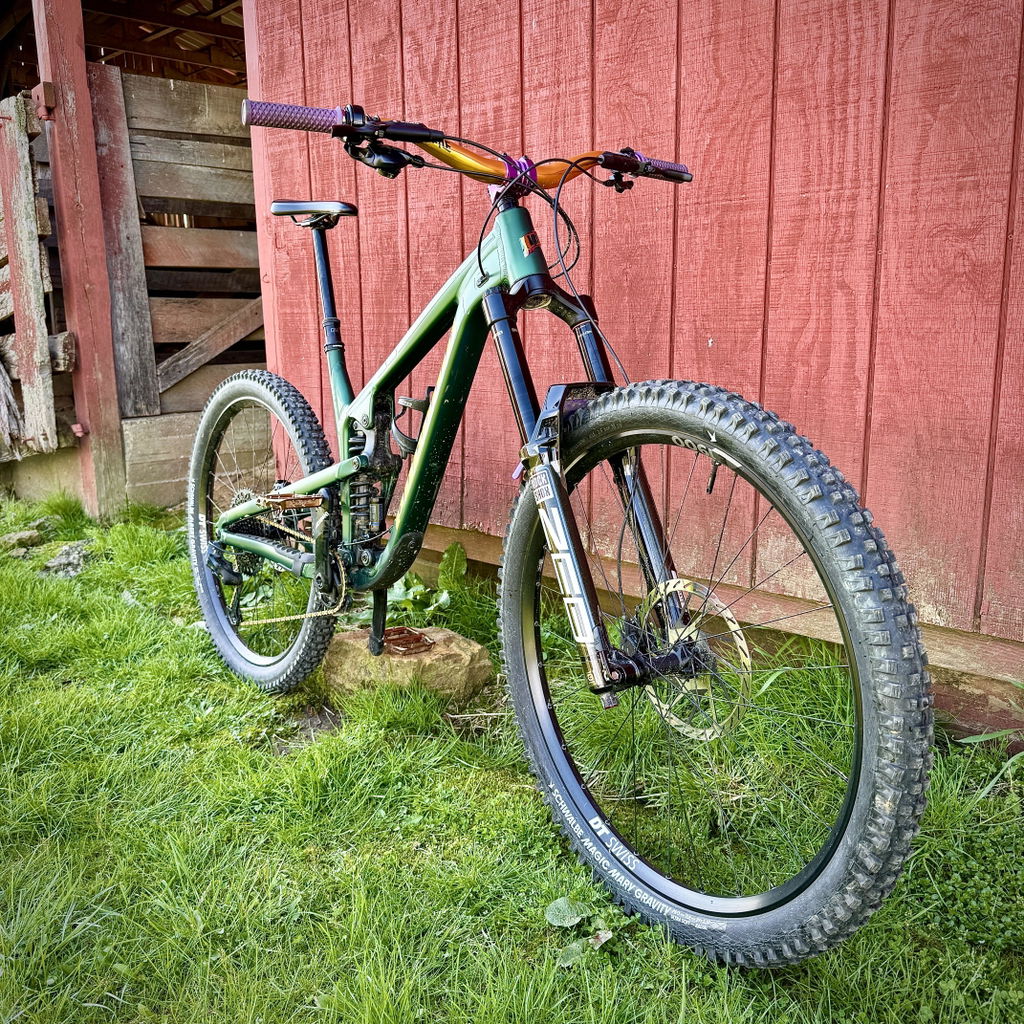

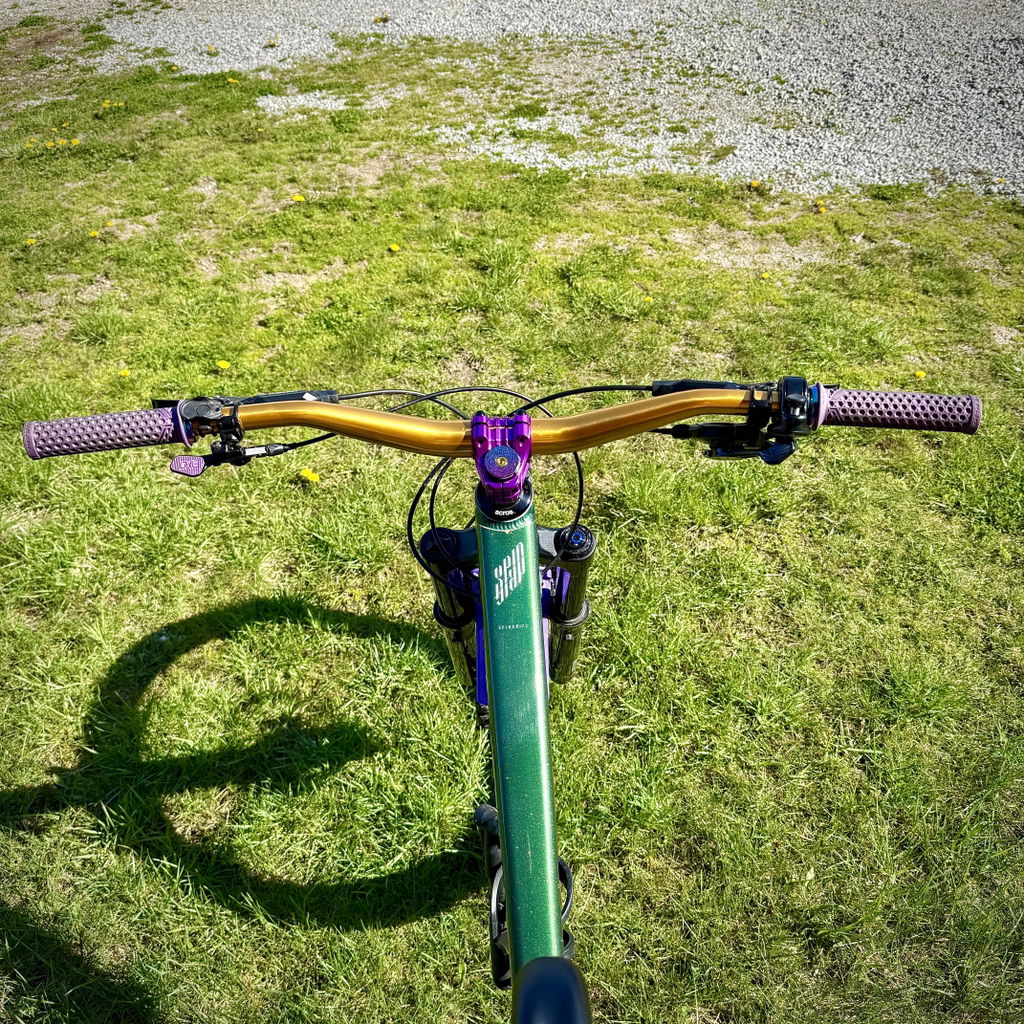

Such a sick bar. I think I was most surprised by the packaging and presentation of the bar, which was really premium. Looks great on my bike, the gold color is perfect. This is my first Title product, and I'm a huge fan. Considering now getting the pedals in gold to match.
Es impresionante,lo mejor que he tenido y muy cómodo, lo único fueron los aranceles que me toco pagar pero de Por si el producto es impresionante,y la caja pues es una buena decoración para el cuarto
Muchas gracias es mi primera vez comprando en title el manubrio rojo es hermoso llegó impecable 35 mm y 38mm,
Muchas gracias por la bolsa y stickes de regalo
i mean do I really need to say anything about gold bars. Look good ride good
Awesome bars, best bars I’ve bought by far
Absolutely beautiful handlebars! Even the packaging is unexpectedly highline. $1000 cell phones don't come in such detailed presentation. A real gem of a company!
Tuffer Lenker sehr geil
Awesome bars !
50mm rise was perfect
Look good
Fast shipping
The packaging was impeccable 👌🏻
Very impressed with my first order ..will definitely buy from / recommend TITLE for future upgrades.
Well done.
I love these bars! Great product 😎
Great handlebars. Clean finish and they look really good.
Bars are sweet
Great bar. Love the chrome finish. Highly recommend it!

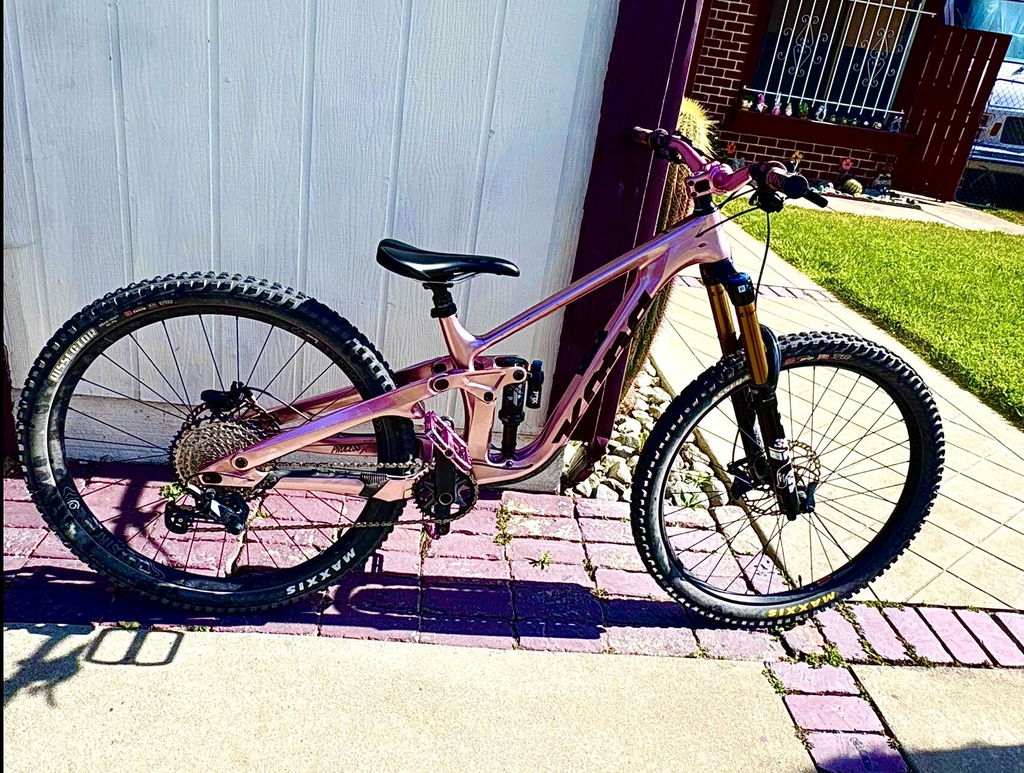

Vibrant beautiful color. Matches my Kona x cr rose gold perfectly.. In love. Matching stem really put it all together.
